Tuesday, February 23, 2016

Guest Post: What it is to be a part of industry?


Over a period of time many people have asked me what it means to have a research career outside academic industry. My answer was "I have no idea". So I requested a friend of mine, Ameya Paleja who works as a Genetic Technologist at ATS GeneTech to write me a piece. He frequently posts in his personal blog space which has a lot of great articles- Coffee Table Science.


When Varun asked me to write about “Life in the industry”, it gave me a chance to sit down and think about my work, how I got here and what I feel about it. I do not intend this post to be advice for any of you but this is my story so far.

It is close to six years that I am part of the industrial side of biology, something that I never thought I would do, when I was in college. Back then, (when I was just crossing into my 20s) industry was for dullards who could be happy doing the same thing again and again, every single day, until came Sunday and you took the day off. Creative minds, worked in research, looked at problems and solved them. I was so sure that I was meant for research, that when I graduated, I jumped into my MSc and knew that the next jump would take me to the first year of my PhD.

I was half way through my I year MSc course at the University of Sheffield and with 6 months left for my next leap, I had no idea, what my PhD was going to be about, nor had I identified a lab I would work in. Luckily, the course demanded that we complete project work in one of the labs and I met investigators in popular fields of cancer, bone development, cell signaling, cardiovascular research etc. But nothing excited me as much as genetic tinkering I could do in Molecular Microbiology. I spent the next 4 months, designing primers, doing PCRs, creating bacterial mutants and testing the effects in iron uptake. More importantly, the project taught me what life in research had in store and what I was signing up for.

The reality check came when I had to apply for my PhD but was turned down time and again for the lack of grants, then available for the field. Even today, researchers of the field rue the funding being pumped into cancer research but in 2009-2010, UK had just begun to recover from recession and there were simply not enough jobs around, lesser in academia. (What I realized then was that studying/ working abroad is not as rosy as it sounds. The grass appears greener on the other side. )

When I returned to India, the story was not very different and research funding was scarce. With a study loan to pay, I could not afford to work voluntarily in the lab and even faculty positions were quite a race. A walk in interview that I went for in Raipur had over 50 applicants, some even with PhD’s and post doctoral experience (I think the situation must be even worse now). The only option was the industry.

My applications to the big wigs failed to even get automated replies but the lesser known companies were more than eager to hire. Interestingly, the small and medium scale industry is quite open to accepting people into their fold than people are to them. Probably our definition of ideal life is reduced to of a good pay cheque, company ferrying you up and down everyday and Sodexo coupons that you can spend at restaurants and supermarkets. After about two weeks of applying to these companies, I had two options to choose from; a product specialist position for Molecular Biology range or a Molecular Biology technologist at a genetic diagnosis company. The lab position was alluring than the marketing job and I took it up.

A few months after joining the company, my stereotypes began to haunt me. I was getting comfortable with the work that I was doing in the lab and now I seemed like a dullard who liked doing the same thing day after day. I started to become unsure if I would wake up the next day and still feel like reporting to work? There seemed like only one way to break free from this trap that I had set up for myself and that did not involve quitting my job. I walked up to the company’s director and asked for more work that would not be repetitive but also help lab in some way.

Putting a great amount of faith in me, I was given the task of adding new tests to the lab’s directory of services. (This would probably not have happened had I not taken the first step) I started expanding the number of common mutations that we were testing for or even adding new tests altogether, that were relevant to the local population. Genetics, being a relatively new area of medicine in India, is still growing and awareness about genetic disorders has just started to become more common. Apart from my regular work, I spent a fair amount of time, reading publications, ordering primers, standardizing tests for our lab and validating them. R & D in the industry has a commercial focus, so you are likely to spend time and effort on something that has commercial value sooner or later.

As our base of tests grew, we started getting requests for tests that were usually outsourced to countries like the US, Austria, etc. Not only do these tests cost quite a bit (a few lakhs to begin with), the turnaround time is usually in months. We took it up as another challenge and delivered test results to patients, using similar technology, with quicker turn around and at a fraction of the original cost. Apart from our regular array of tests, we now regularly receive custom requests for identifying / screening of genetic disorders and we are helping patients and their families. Additionally, we have also been able to publish scientific papers which have not only added to our credibility but might also help other labs/ researchers in India who are looking to achieve something similar. Come to think of it, if you really want to solve a problem, academia is not the only place to do so.

Over the past year, I have been involved in putting in place a quality management system for the work that we do in our laboratory. The quality system ensures that the results given by the laboratory follow the processes that are internationally acceptable and practiced and gives results that accurate, reproducible and traceable. Our effort were recognized by an external assessing body, National Accreditation Board for testing and calibration Laboratories (NABL) who have granted us accreditation as per norms of 15189:2012 and puts us at par with medical testing laboratories around the world. Pharma or Biotech industries follow other norms for maintaining the quality of their work and this work can be highly rewarding for those who like to maintain meticulous records of the work they have done.

About three years ago, I also collaborated with a friend to start our blog, Coffee Table Science. The basic idea was to make a portal where people from all walks of life could visit and read about scientific developments and also about science in general. We don’t do, what is gravity and why do leaves look green kind of posts but cover recent findings and post interviews with researchers from different parts of the world. The blog lets me read more about science and also connect with other people, like Varun, who are doing their own bit for sharing science and science communication in general.

Overall, I would say that I am quite pleased working in the industry and with what I have done so far. Probably working in a larger biotech company would not have let me dwell into so many things that I have done in the past six years.

..... Ameya Paleja

Friday, February 19, 2016

BtB#6: H pylori Urease


I perhaps have never written about Helicobacter pylori. Perhaps microbiologists working in clinical diagnostics know this as one of those rare organisms that gives an extremely rapid positive reaction for urease. Its usefulness as a protective factor for the pathogen against gastric acidity is well known. But who provides the substrate for urease production?

Photo 1: H Pylori micrograph.
First, for the naive readers a quick basics. H pylori is a microaerophilic, gram negative bacterium known for its spiral shape and motile by means of four to eight sheathed flagella. Its role in gastritis and peptic ulcer disease was not appreciated until Barry Marshall and Robin Warren showed it to be the case by drinking the culture (The story is quite famous and you could read about it anywhere on the net). Studies on global prevalence has indicated multiple subtypes in a variety of geographical regions. A greater interest has been its inverse association with autoimmune conditions such as asthma. It has been shown that colonisation with certain subtypes of H pylori may have a beneficial effect.

Fig 1: Mechanism of acid acclimation
by H pylori. Source
Urease forms the main part of bacterial defence. It protects the bacteria from gastric acidity. As a matter of fact, roughly 6% of the total bacterial protein content is contributed by Urease enzyme. The importance is also highlighted by a dedicated bacterial system for storage and sequestration of Nickel which forms the cofactor for enzyme. Urease is structurally hexapolymeric consisting of the two structural subunits, UreA (26 kDa) and UreB (61 kDa) bound two nickel ions. Urease gene complex also encodes an acid-gated urea channel (UreI) and the accessory assembly proteins (UreE–H). The standard theory is that Urea and H+ diffuse into the periplasm of bacteria through porins in the outer membrane. Periplasmic acidification results in a activation of UreI (via conformational change) permitting the entry of urea into the cytoplasm, where it is rapidly hydrolysed. The ammonia rapidly diffuses into the periplasmic space, where it becomes protonated, raising the pH to about 6.1, a level consistent with survival and growth.

Coming to the question, who sources the urea? Though small quantities of urea and ammonia maybe found in the gastric region, they don't sufficiently account for the massive quantities of substrate required for neutralisation of gastric acidity. The bacteria relies on itself to make the necessary substrate. Through toxins, H pylori induces cell death in gastric linings and the released contents is used to extract arginine. This is used to obtain urea substrate via aliphatic amidase and an arginase. The whole system is controlled through a gene system which senses the environment. Making of urea and urease is shut down when the acidity levels are low thus allowing unwanted alkalisation of bacterial own proteins.

Amedei A, Codolo G, Del Prete G, de Bernard M, & D'Elios MM (2010). The effect of Helicobacter pylori on asthma and allergy. Journal of asthma and allergy, 3, 139-47 PMID: 21437048

Friday, February 12, 2016

Zika Virus spread 2016- Update


After the big Ebola outbreak which was initially neglected for its potential, every outbreak has been well investigated and worked on. In the latest of the series, Zika is making a lot of headlines. I have previously blogged about Zika virus. The number of recorded cases have increased over the past month. By 1st February 2016, Zika has been declared as a global emergency. WHO director general, Margaret Chan stated, "I am now declaring that the recent cluster of microcephaly and other neurological abnormalities reported in Latin America following a similar cluster in French Polynesia in 2014 constitutes a public health emergency of international concern."

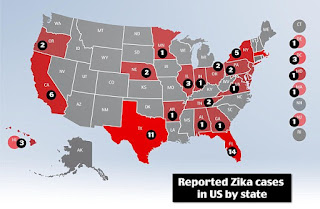

Fig 1: Reported Zika cases in US.
Data as on 11 Feb 2016
At least 33 countries have reported a minimum of one case. It should be noted that by December 2015, there was a dramatic increase in reports of ZIKV infection in the Americas. Brazil is the most affected country, with preliminary estimates of 440,000 to 1.3 million by end of 2015. A recent exact statistics is not available but the number of ZKV cases reported has seen an explosive increase, especially in South American geography. The virus has also been identified in the US, with latest case identified in Maryland. That makes it a total of 21 states with a total of 59 cases have been reported in the US. All of them are imported cases. UK has reported 4 imported cases. China has also reported its first case. Though India is seen as a region with possibilities of ZKV infection, press release has stated that there has been no reported case so far.

The following Fig 2, gives a overall picture of the extent of ZKV spread on a global scale in the past 2 months. Data as on 11 Feb 2016.

Fig 2: Countries or territories with reported confirmed autochthonous cases of Zika virus infection in the past 2 months.
Photo 1: Negatively stained viral particle
with morphologic characteristics
consistent with those of Flaviviridae viruses.
More than the outbreak in itself the interest has been in its effect on Pregnancy and microcephaly in newborn neonates. Though a formal link is yet to be established, the current data superficially appears to support the association. But a article published in NEJM yesterday further adds to the evidence. The paper describes a case of a Slovenian woman from Brazil with symptoms of Zika in the 13th week of her pregnancy. After ultrasound examinations at 29 and 32 weeks showed evidence of severe brain malformations, the woman decided to have an abortion. Microbiological work up showed positive results for ZIKV on RT-PCR assay only in the foetal brain sample, (6.5×107 viral RNA copies per mg of tissue). Electron microscopy was done from homogenised brain tissue showing virus particles. See Photo 1. The question that remains to be answered is how many percentage of mothers infected with zika transmit it to the baby. Also, it is not clear as to if all babies affected with ZKV come up with microcephaly. To sum it up, as the comment in Nature News article puts it, “We have to start settling down and think about how we’re going to take care of these kids. If there is a link between Zika and microcephaly, the number of babies affected by the condition could soar as the virus spreads. We have no idea how big it’s going to get.”

Currently there is no specific treatment for ZKV or a vaccine. Many different sources has expressed an interest in developing vaccine. Bharat Biotech Ltd, has announced that they have 2 possible vaccine designs for Zika, and expect them to be tested soon. One is a recombinant virus vaccine and another is an inactivated vaccine. I have not been able to find the molecular details. With Obama administration seeking funding for research on ZKV there appears to more interest in studying ZKV infection. Much of its molecular details are unknown. Also several press releases have noted that US is probably collaborating with Brazilian institutes for a research deal on ZKV.

Global recommendations for avoiding ZKV infection are not clear. Apart from surveillance, screening of travellers to effected country is recommended. Being a mosquito borne infection all precautions such as clearing mosquito breeding sites and use of bed nets have been recommended, especially for pregnant women. Evidence of sexual transmission is not documented, though some doubts have been raised.

Fauci AS, & Morens DM (2016). Zika Virus in the Americas - Yet Another Arbovirus Threat. The New England journal of medicine PMID: 26761185

Mlakar J, Korva M, Tul N, Popović M, Poljšak-Prijatelj M, Mraz J, Kolenc M, Resman Rus K, Vesnaver Vipotnik T, Fabjan Vodušek V, Vizjak A, Pižem J, Petrovec M, & Avšič Županc T (2016). Zika Virus Associated with Microcephaly. The New England journal of medicine PMID: 26862926

Monday, February 01, 2016

Lab Series# 10: MALDI TOF in Microbial diagnostics


I have many a times talked about the current issues with Clinical microbiology- rising antibiotic resistance and too much of time taken for pathogen identification. The new 4th generation technologies are aiming at rapid workup with very high sensitivity. There is a lot of research on reducing this large turn around time. One of the systems that has more recently come into the market is MALDI-TOF based microbiology identification. I have been personally running some tests that for more than a year now. For the 200th post in this blog site, I think its worth a good share.

Let me digress a little bit and talk about Mass Spectrometry (MS). The credits of inventing MS is partly owed to findings by Joseph John Thompson and Francis William Aston. The modern MS was developed by Arthur Jeffrey Dumpster.

Fig 1: Components of
Mass Spectrometer.
MS is an instrumental technique used to calculate mass to charge ratios (m/z) and relative abundances for any given molecule. In this case m stands for mass and z stands for charge number of ions. Consider you have two types of balls one heavier and the other lighter. Assume that the balls are travelling at a speed and you have a strong air flowing in a perpendicular path. The lighter is the ball, easier is it to deflect its path. In essence, if you know the original path, speed and the force used for deflection, you can calculate the mass of the ball. That's pretty much how the classic mass spec works.

An illustration of general outline of MS is shown in Fig 1. For different steps many different variants are available, of which most commonly used versions are shown. MALDI TOF is a build where the ionisation process is through matrix Laser desorption and detection is through time of flight. Hence the name- Matrix assisted laser desorption/ionisation- time of flight, or in short MALDI TOF. In the original studies, it was found that alanine could be ionised when mixed with tryptophan and irradiated with a pulsed 266 nm laser. It was identified with subsequent studies that there are better matrix which can confer better ionisation properties. Examples include- Cinnamic acid derivatives, Picolinic acid etc. In this case, the time taken for the molecule to reach the detector is calculated as TOF, which functions as the mass analyser. The m/z values generated is plotted as a graph.

Fig 2: MALDI TOF Spectra analysis
The trick in identifying the organism is to release the abundant protein such as Ribosomal proteins which have unique signatures for the species. With large scale studies a database has been generated containing m/z values for multiple species. The obtained sample plot is compared with the database and an algorithm calculates the closest possible match. An example of Mass spec comparison is shown in Fig 2. The upper part of the graph shows the spectra generated from my sample and the lower part from the spectra from database. For a closer look I have shown an example of detailed spectra in the higher molecular range. The red lines indicate the unmatched m/z values and green indicates good match. Depending on number of m/z ratio's matched the confidence in the identification varies. If database exists for strain subtype and similar peaks can be found in the generated spectra, strain typing can be directly done. That means there is an inherent limitation- "The database".

Fig 3: MALDI TOF Process
For most of the bacterial isolates, obtained in fresh culture the proteins are easily release and ionised. The cultured bacteria is spotted on a MALDI plate, to which formic acid and matrix is added (I used α-Cyano-4-hydroxycinnamic acid reagent). The spots are bombarded with high energy laser. A representation of the process is shown in Fig 3. For more difficult organisms such as Mycobacterium species, a extraction step is recommended (I have tried with Acetonitrile extraction method).

Photo: I and Dr. Shivaram working
The MALDI TOF systems are used in multiple laboratories worldwide. The system allows identification of organism in less than 10 min. More recently techniques have been developed where the organism can be analysed directly from sample. For example in case of bacteraemia, the blood sample is treated with a reagent that reduces host proteins to a very large extent. Subsequently, MALDI TOF can be run with extract. Within an hour the results can be obtained. That is a huge leap from conventional method.

With help of MALDI TOF, bacterial and fungal strains are well identified. As I already specified, the method is as good as the database is. Identification of virus would be an obvious target. However, most viruses have very few proteins. Additionally, they can't be independently cultivated. Hence, always there are a lot of other proteins in background which will mask the very few viral proteins. Despite the problems, attempts have been made to identify viral strain, with a small success percentage.

The next challenge is antibiotic sensitivity. MALDI TOF MS inherently detects and creates a spectra ID for anything that you feed it. Antibiotic resistance can be due to a huge combination of protein changes and a database for every variant is seriously beyond the scope at least for now. But there is a possible alternative method for detecting some types of resistance. For example, if the system can show that a drug is being cleaved by the isolate then it must be resistant, irrespective of its changes in its proteins. An example of this is Meropenem hydrolysis assay. Strain is incubated with meropenem and MALDI TOF is run for the mixture. By looking for peaks which correlate with cleavage products of Meropenem, carbapenemase resistance can be indirectly inferred. The time of work can be reduced to about 3-4 hours. Now studies are also showing this could be done from sample directly.

Overall, MALDI TOF is a great method especially when Turn around time needs to be as fast as it can be.

Murray PR (2012). What is new in clinical microbiology-microbial identification by MALDI-TOF mass spectrometry: a paper from the 2011 William Beaumont Hospital Symposium on molecular pathology. The Journal of molecular diagnostics : JMD, 14 (5), 419-23 PMID: 22795961

Biswas S, & Rolain JM (2013). Use of MALDI-TOF mass spectrometry for identification of bacteria that are difficult to culture. Journal of microbiological methods, 92 (1), 14-24 PMID: 23154044

Hrabák J (2015). Detection of carbapenemases using matrix-assisted laser desorption/ionization time-of-flight mass spectrometry (MALDI-TOF MS) meropenem hydrolysis assay. Methods in molecular biology, 1237, 91-6 PMID: 25319782
